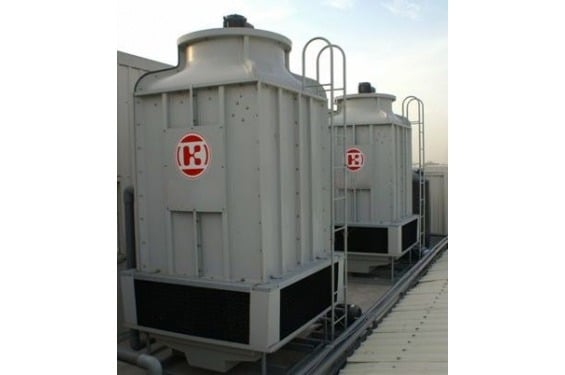

KCC Closed circuit type cooling towers Modular Cell Configuration



■ Features:
1. Package type, with FRP structure, FRP casing & basin
2. Combining the function of a cooling tower and heat exchanger into one system.
3. With fixed spray nozzles for water distribution system
4. With PVC drift eliminator
5. With two heat-exchanging media:  copper coils and PVC film fills.
6. Process water is circulating through copper coils. The heat of the process water is rejected through evaporation and the
pre-cooled recirculating spary water.
7. Recirculation water is cooled when passing over the PVC film fills, thermally equalized and re-distributed over the outside
of the copper coils.

■ Capacity range:
Available in 6 standard models (single cell) with capacilities from 20 to 70 nominal tons. (Various modular combinations are
available to meet different cooling capacity requirements and jobsite restrictions.)

■ Applicable for:
Heating, ventilation, air-conditioning, and light to midium processing applications.

■ Benefits:
1. Keeping process water from being contaminated
2. Reducing power consumption and maintenance costs
3. Conserving space in equipment room
4. Maximizing system efficiency
5. Reducing water treatment costs
6. Offering options for free cooling and dry cooling in cold winter
7. Modular copper coils, kight weight, easy to install
8. High efficiency PVC drift eliminator minimizes drifting loss
